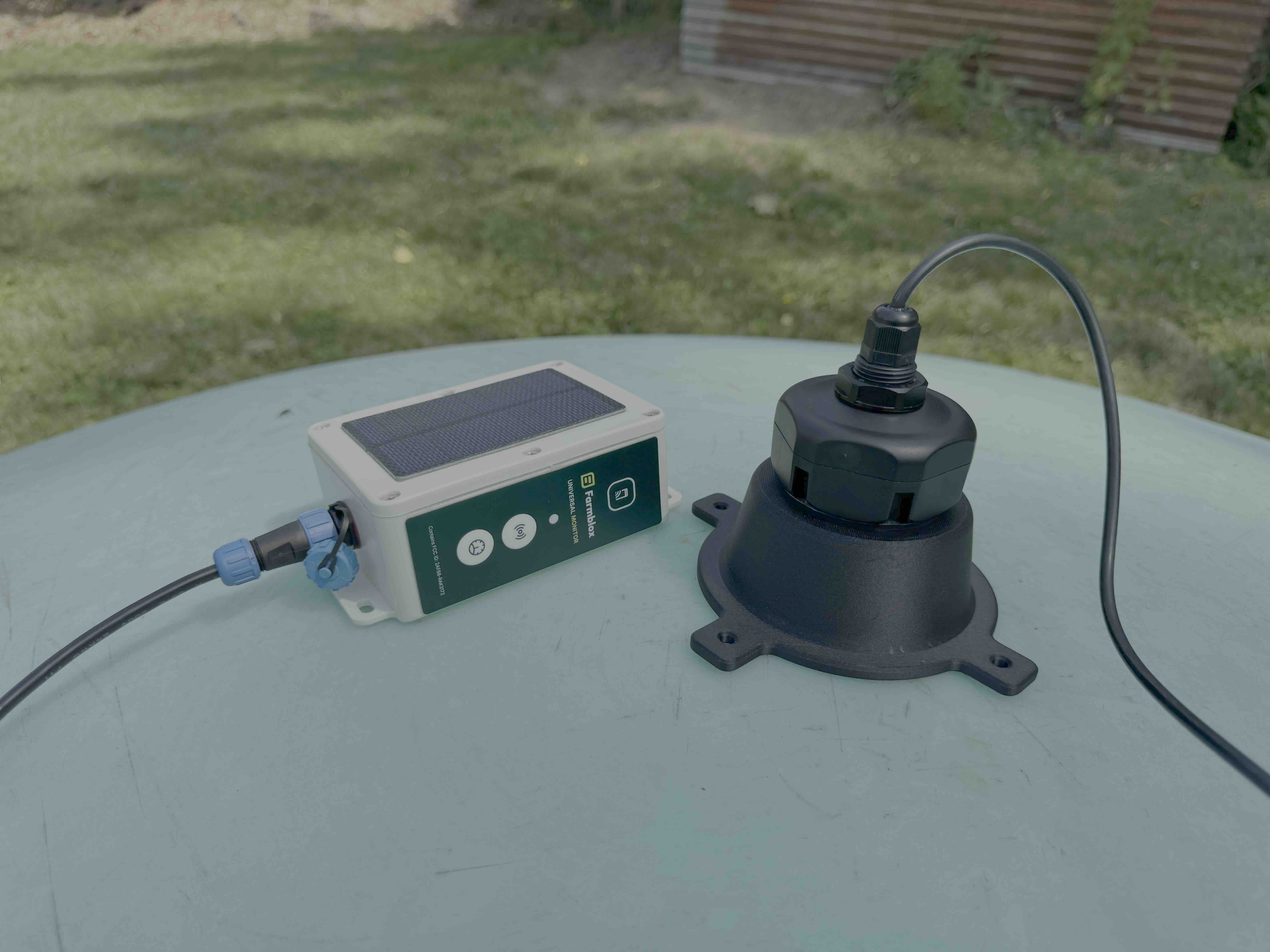

Radar Level Sensor
Contactless level tracking of your poly tanks in real-time for improved planning (0-100% tank level). Wether for fertilizer, pesticides, water treatment solutions, water, or other chemicals. Get automatic alerts in case of high or low fill levels.
Measures / Controls
Fill Level, Distance
Product Features
- Readings every 2.5 minutes.
- Remotely track tank levels from anywhere.
- Automatic alerts for high or low fill levels.
- Contactless - just place the sensor on top of the poly tank. Contactless prevents damage from corrosive chemicals such as fertilizer, pesticides, water treatment solutions and other chemicals.
What's Included
- Radar Level Sensor
- Install bracket, complete with mounting adhesive and set screw ports
- 2x alcohol pads for cleaning the mounting surface to adhese the mounting bracket
Measures / Controls
Measurement Types
Fill Level, Distance
Measurement Specifications
% of full/empty
Range
- 2 inches to 30 feet (20cm to 10m)
- 2 inch deadzone
Resolution
0.004 inches (0.1mm)
Accuracy
0.04 inches +/- 0.012 inches (1mm, +/- 0.3mm)
Communication / Wireless Range
Communication / Frequency
Communication / Network Connectivity
Communication / Cell Providers
Dimensions / Length
Sensor: 2.56 inches (65mm)
Dimensions / Height
Sensor: 2.48 inches (63mm)
Dimensions / Width
Sensor: 2.56 inches (65mm)
Dimensions / Weight
Sensor: 1.76 ounces (50 grams)
Material
Connection
Farmblox PnP connector to Universal Monitor
Cable Length
6.5 ft (2m)
Operating Temperatures
-49F to 185F (-45C to 85C)
Power
Powered by the Farmblox Universal Monitor
IP Rating
IP67/68
